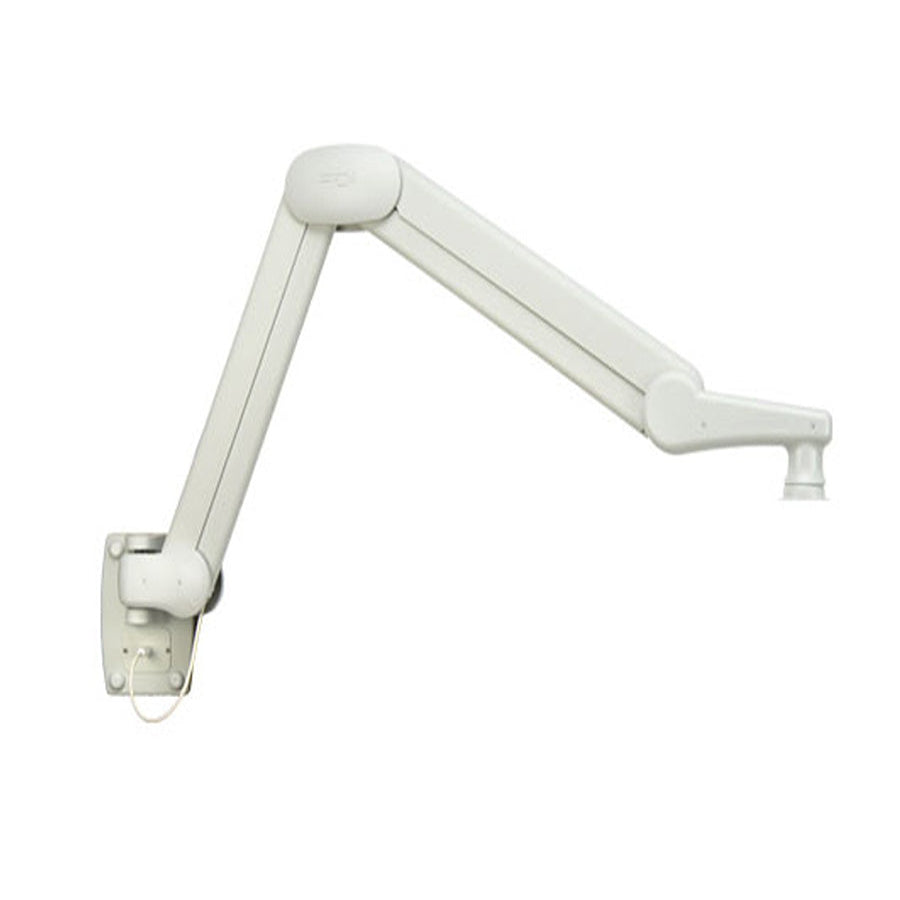

1000 Series Support Arms for Personal Patient Entertainment Devices

Options to support 7 Lb. up to 22 Lb. devices

The Longest Reaching Arm in the Industry.

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. Select the 1000 Series Arm for a sturdy 72” extension that holds a PDi display for the patient to interact with, and contain more than 3 cables for maximum functionality and usage.

Features

UL Listed for Healthcare Use in USA & Canada
Anti-Recoil and Swivel Safety Features
Easy to Clean
Antimicrobial Powder Coatings
Rust Resistant
Standard 7 Year Warranty **
Available in Starlight Gray or Cream

Specifications

Product Includes:	Pneumatic nitrogen gas cylinder support
Weight Capacity:	22 lbs/10 kg
Lift:	30.9"
Lower:	20.5”
Display Tilt:	+15° / -15°
Display Pan:	270°
Arm Rotation:	180°
Max Extension:	71.5”
Base Weight*	16.5 lbs / 7.5 kg

*Final weight is dependent on cabling, customizations, and accessories

**Standard Warranty: 1400-Series arms with 5/8” (0.625 inch) base pin, 500-Series arms with 5/8” (0.625 inch) base pin, 1000-Series arms with 5/8” (0.625 inch) base pin, 7-year limited warranty from date of original purchase (does not apply to cables within the arm).• All other PDi arms not stated above, 3-year limited warranty from date of original purchase (does not apply to cables within the arm).
