Specifications

• Pneumatic nitrogen gas cylinder support
• Weight Capacity:  Up to 8 lbs (3.6kg)
• Lift: 24.5”
• Lower: 24.3”
• Display Tilt: +15° / -15°
• Display Pan: 270°
• Arm Rotation: 180°

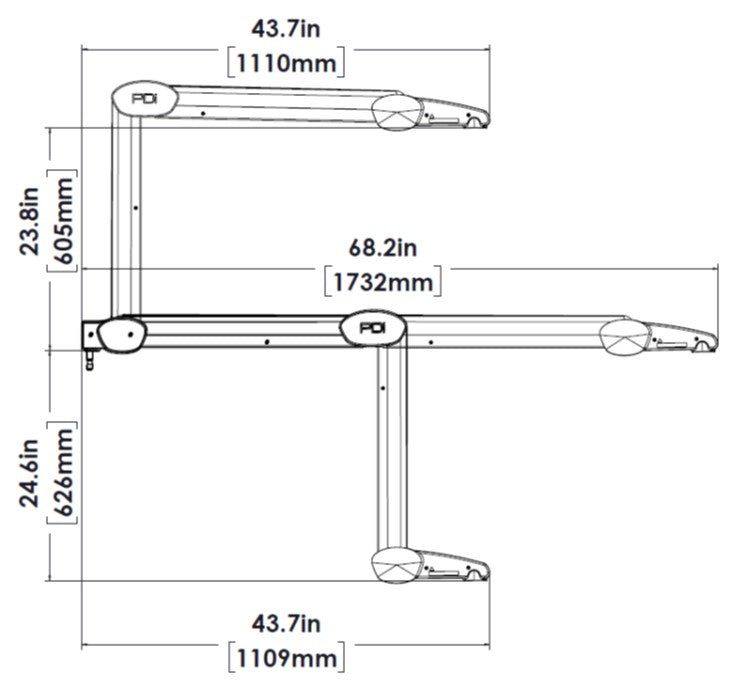

• Max Extension: 67.8”
• Unit Weight* 16.6 lbs / 7.53 kg
• *Final weight is dependent on cabling, customization, and accessories

Features

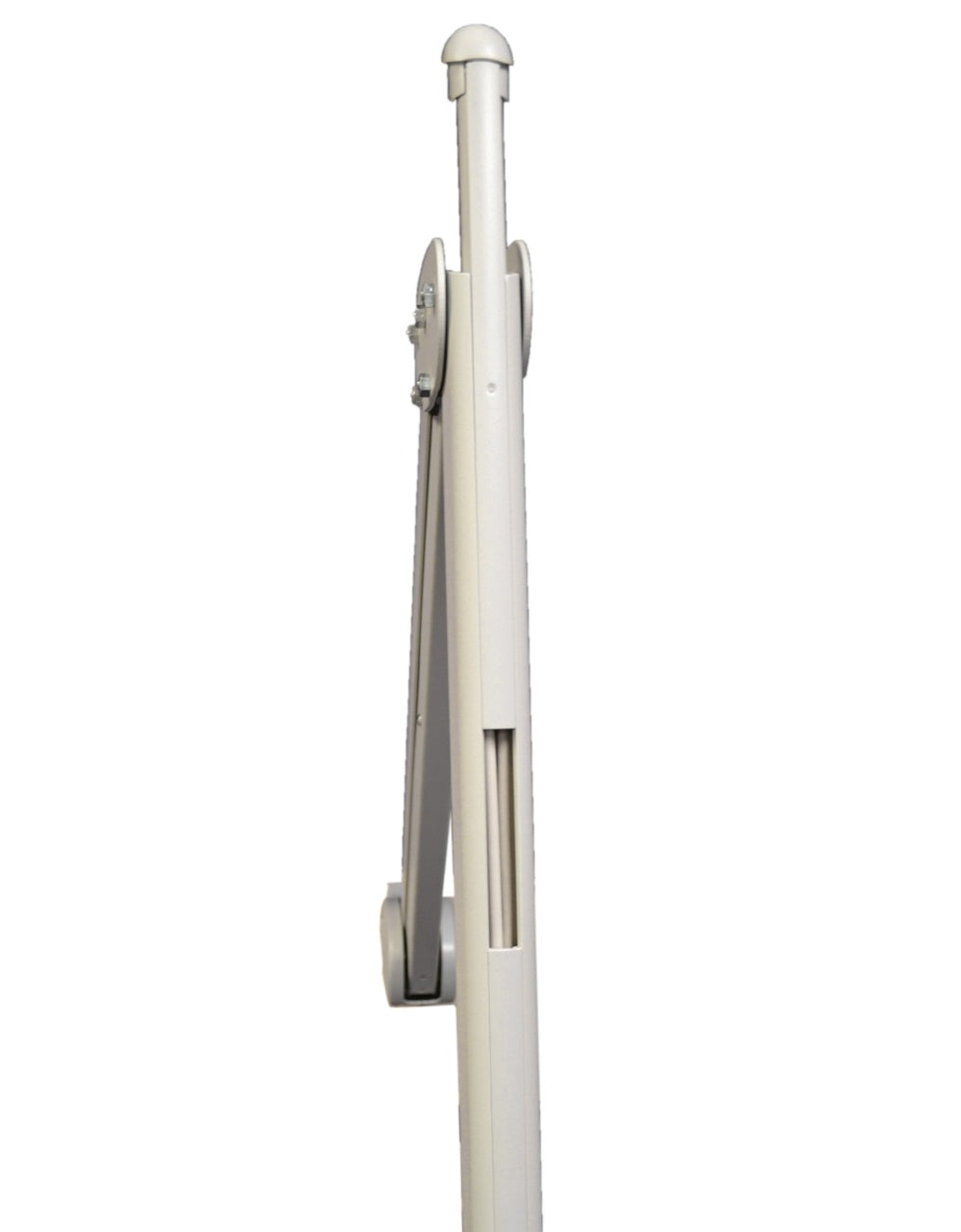

• Removable Wire Shields along Top of Arm Sections
• UL Listed for Healthcare Use in USA & Canada
• Nitrogen Gas Cylinder Design
• Anti-Recoil and Swivel Safety Features
• Easy to Clean
• Antimicrobial Powder Coatings
• Rust Resistant
• Standard 7 Year Warranty **
• Available in Starlight Gray and Cream

** Standard Warranty: 1400-Series arms with 5/8” (0.625 inch) base pin, 500-Series arms with 5/8” (0.625 inch) base pin, 1000-Series arms with 5/8” (0.625 inch) base pin, 7-year limited warranty from date of original purchase (does not apply to cables within the arm).• All other PDi arms not stated above, 3-year limited warranty from date of original purchase (does not apply to cables within the arm).
